RhinoCross® Unifix
The add to cart button will appear once you select the values above
Rhino Raised Flooring / Product information

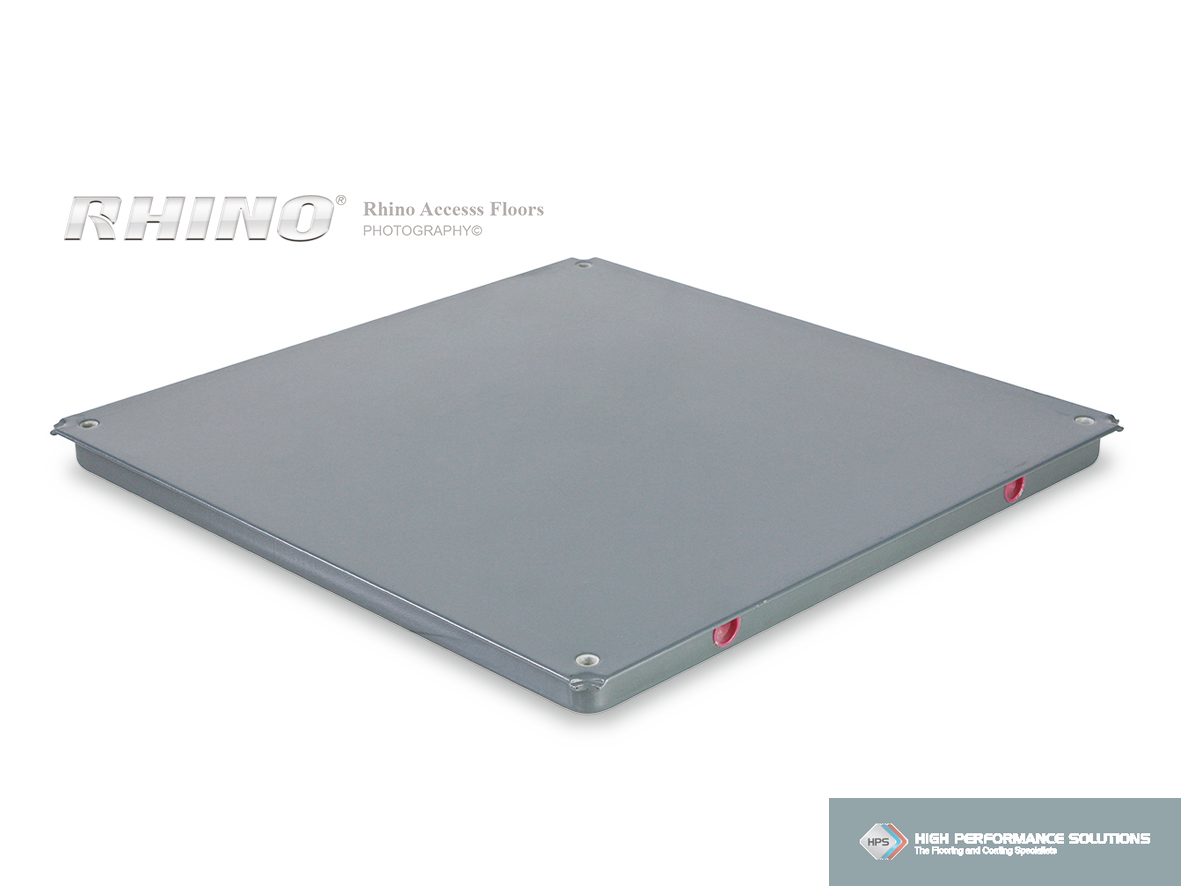

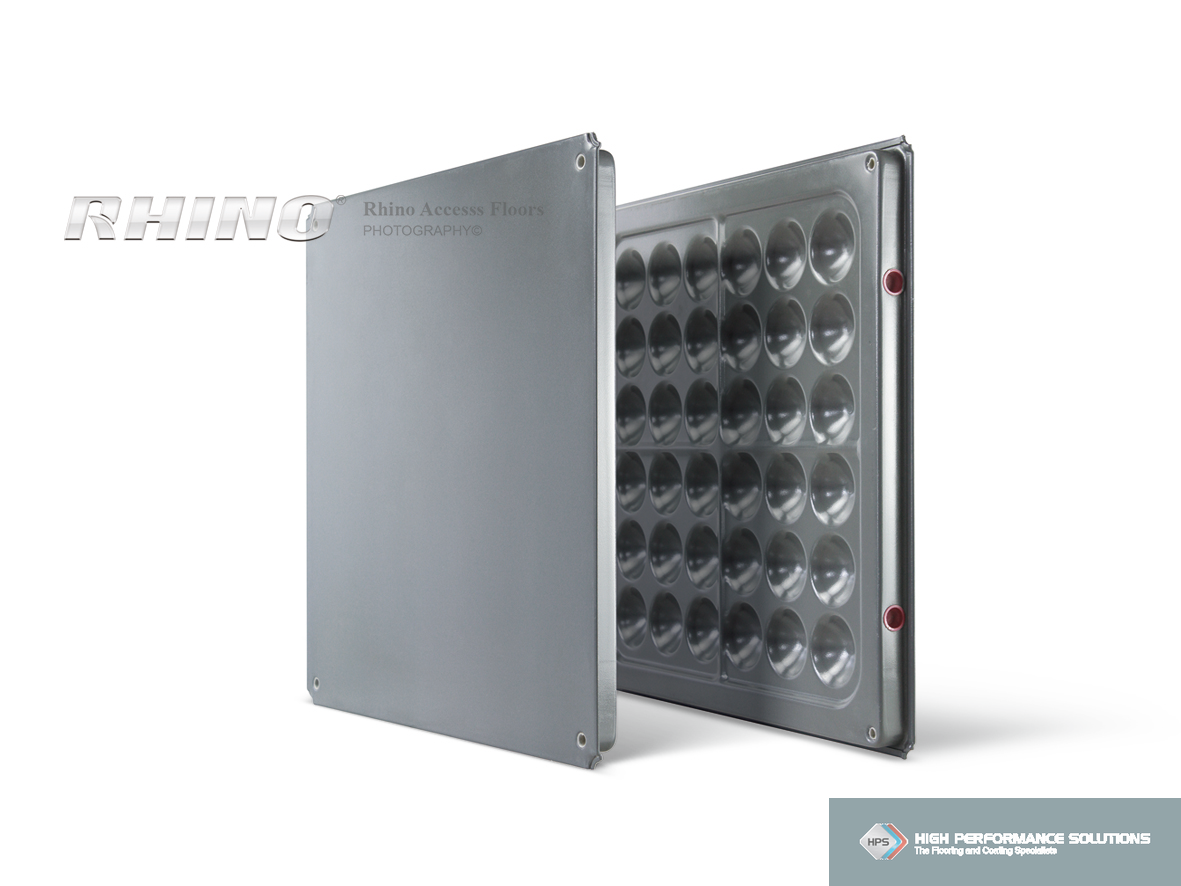

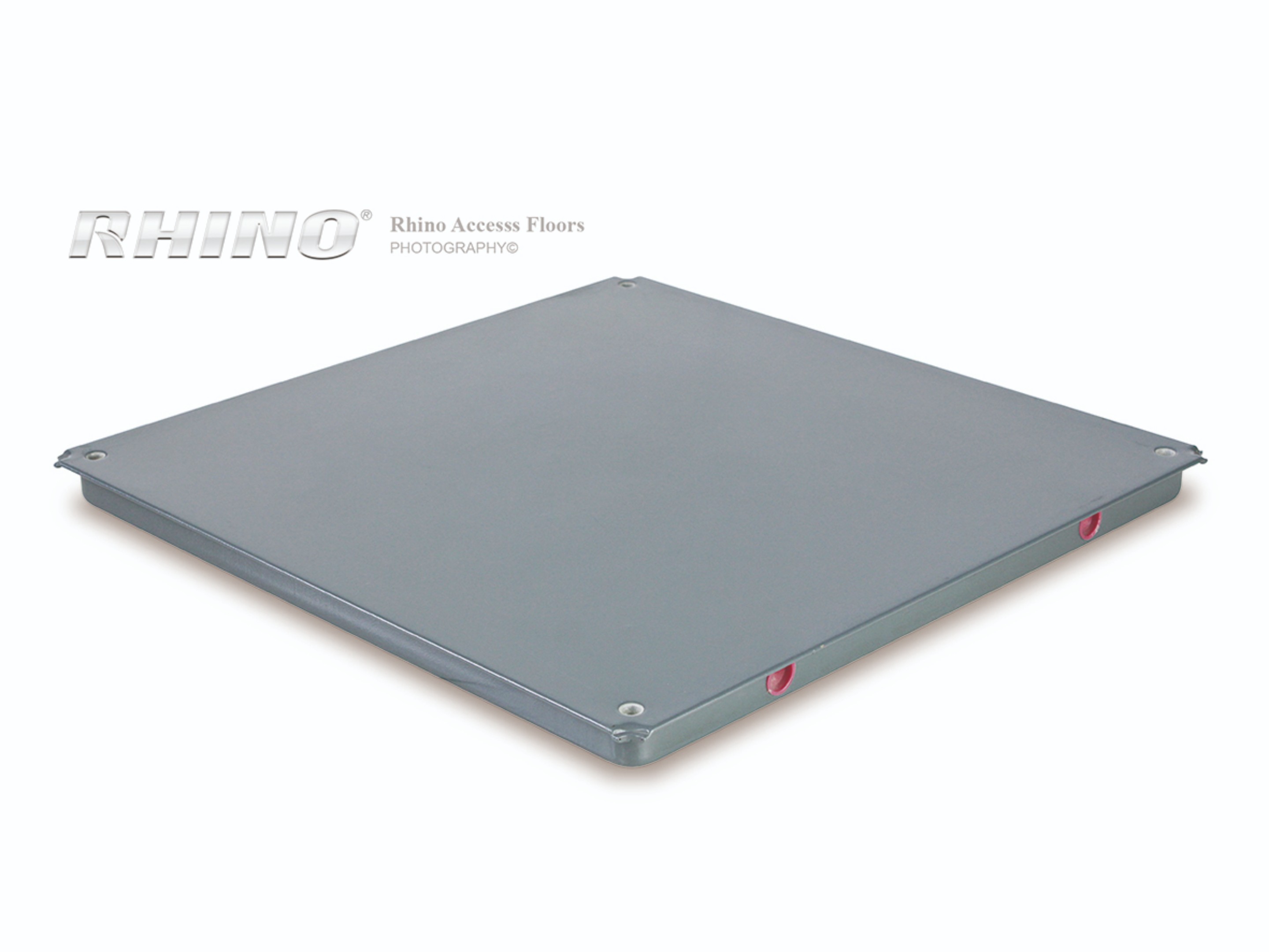

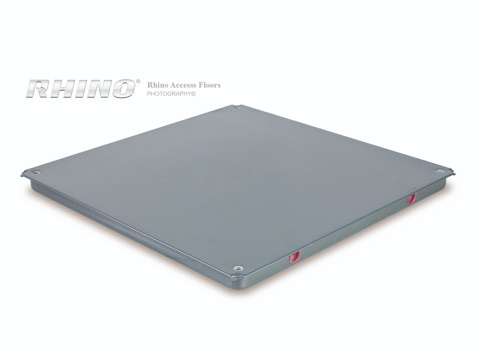

Cross Unifix® bare finish panel was manufactured from cold rolled steel resistance weld, light weight cement infill panels are specifically designed to accommodate 500mm x 500mm carpet tiles for general office’s application. Pre-formed outlet holes saved a lot of time on cutting panels for cable outlet at site. The Unifix® design maximized system’s stability and widely used in Japan market where earthquakes are frequent.
Technical Specs
| UX501 | UX502 | |
|---|---|---|
| Panel Size | 500mmx500mm | 500mmx500mm |
| Panel Thickness (nominal) | 28.00 mm | 29.00 mm |
| Panel Weight | 10.00 kgs | 11.00 kgs |
| System Weight (typical) | 41.05 kgs | 45.06 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN |
| UDL/SQM | 8.00 kN | 12.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN |
Features
1. Unique Unifix® design
2. 500mm small span better load bearing capacity
3. Quiet, with a solid feel underfoot
4. Powder-coated, protective epoxy finish
Download Brochures
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
Request technical information
