RhinoAlutec® Grating

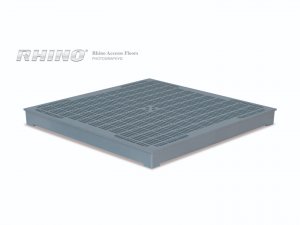

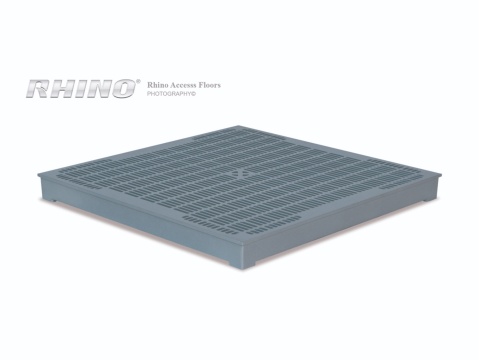

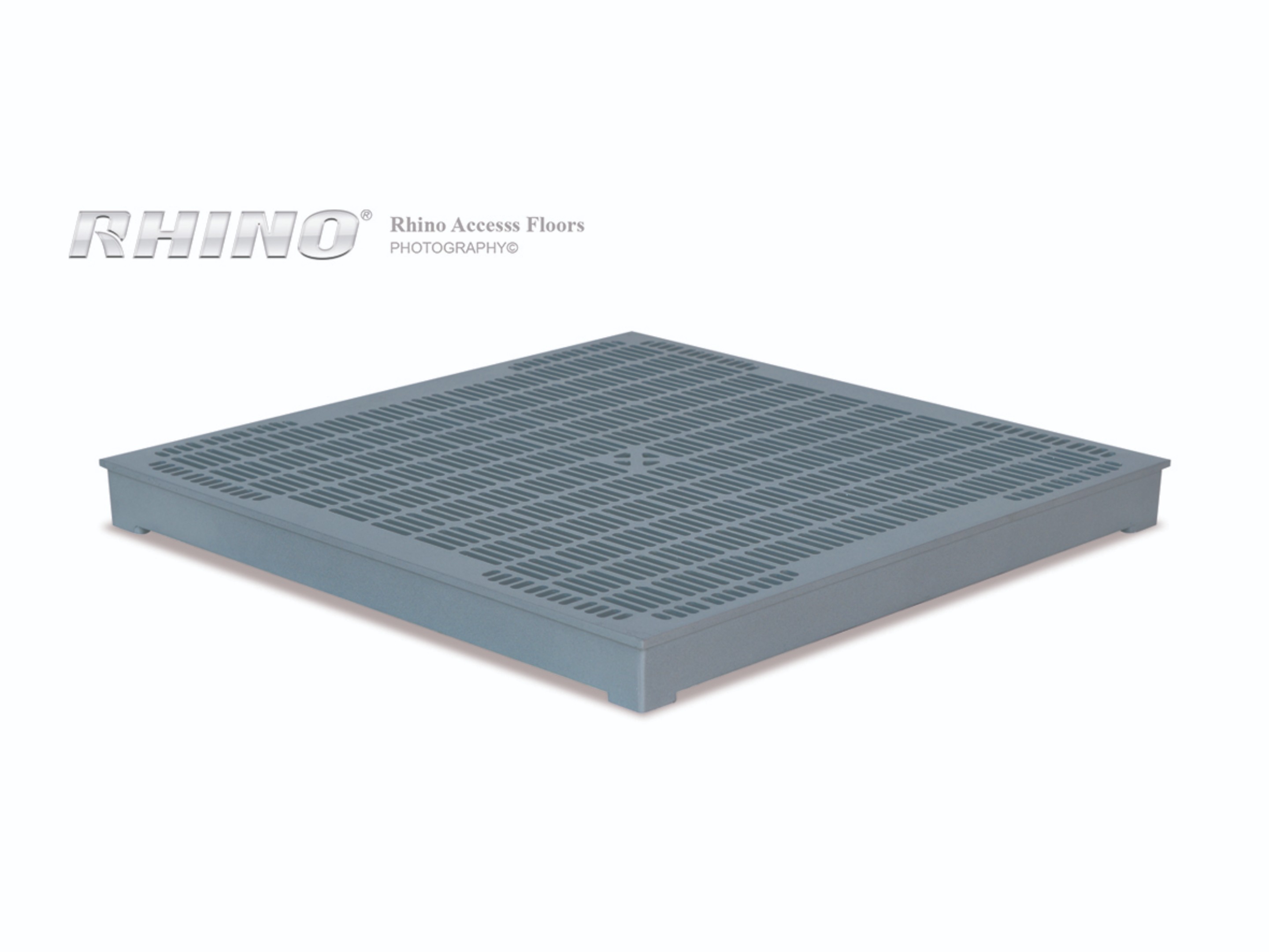

Alutec aluminum grating panel (50% airflow) is an ideal solution for cooling, this panel is specifically designed with no underside obstructions to provide optimum laminar air flow. It has been widely used in data centers and server rooms.

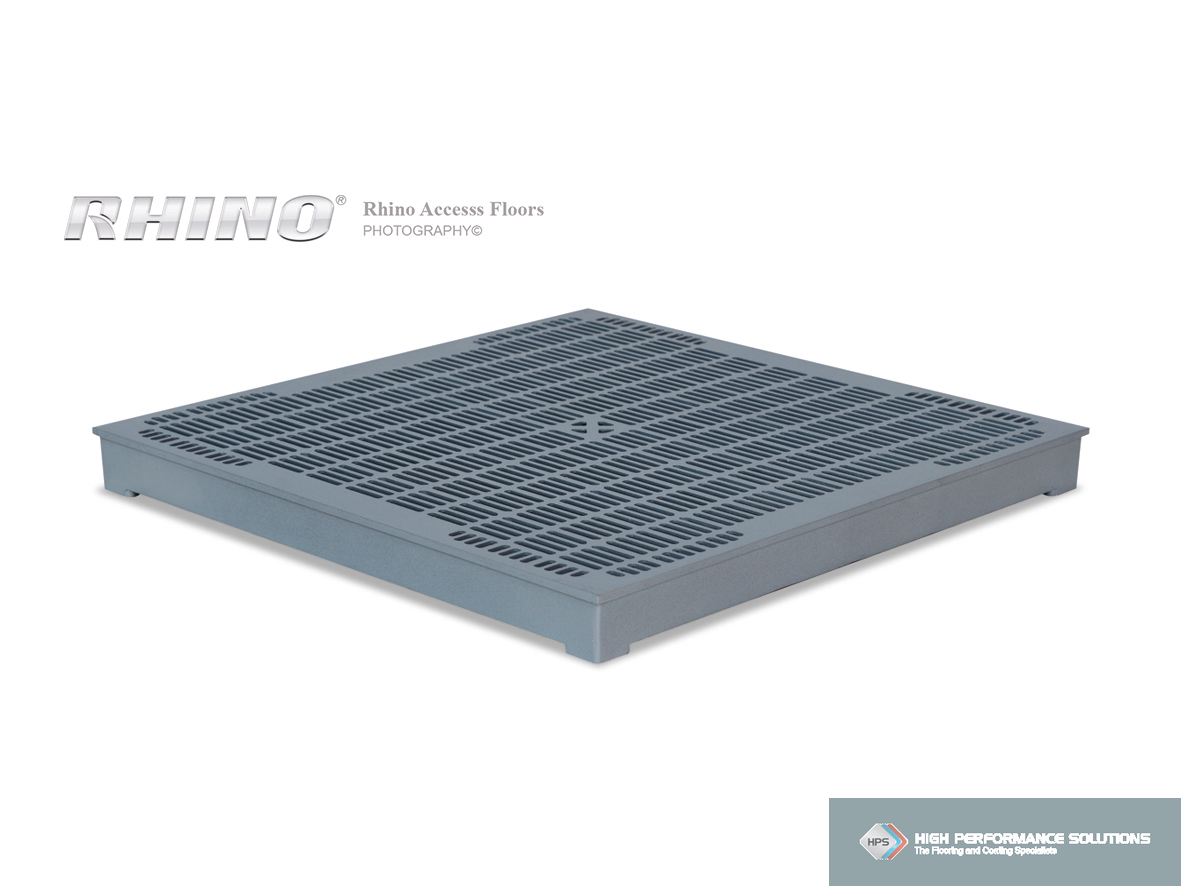

Technical Specs

	ALG1000	ALG1250	ALG1500
Panel Size	600mm x 600mm	600mm x 600mm	600mm x 600mm
Panel Thickness (nominal)	55.00 mm	55.00 mm	55.00 mm
Panel Weight	10.00 kgs	11.00 kgs	12.00 kgs
System Weight (typical)	33.85 kgs	36.63 kgs	39.41 kgs
Point load 25x25mm sq	4.50 kN	5.56 kN	6.67 kN
UDL/SQM	12.00 kN	14.83 kN	17.80 kN
Ultimate load	13.50 kN	16.68 kN	20.01 kN

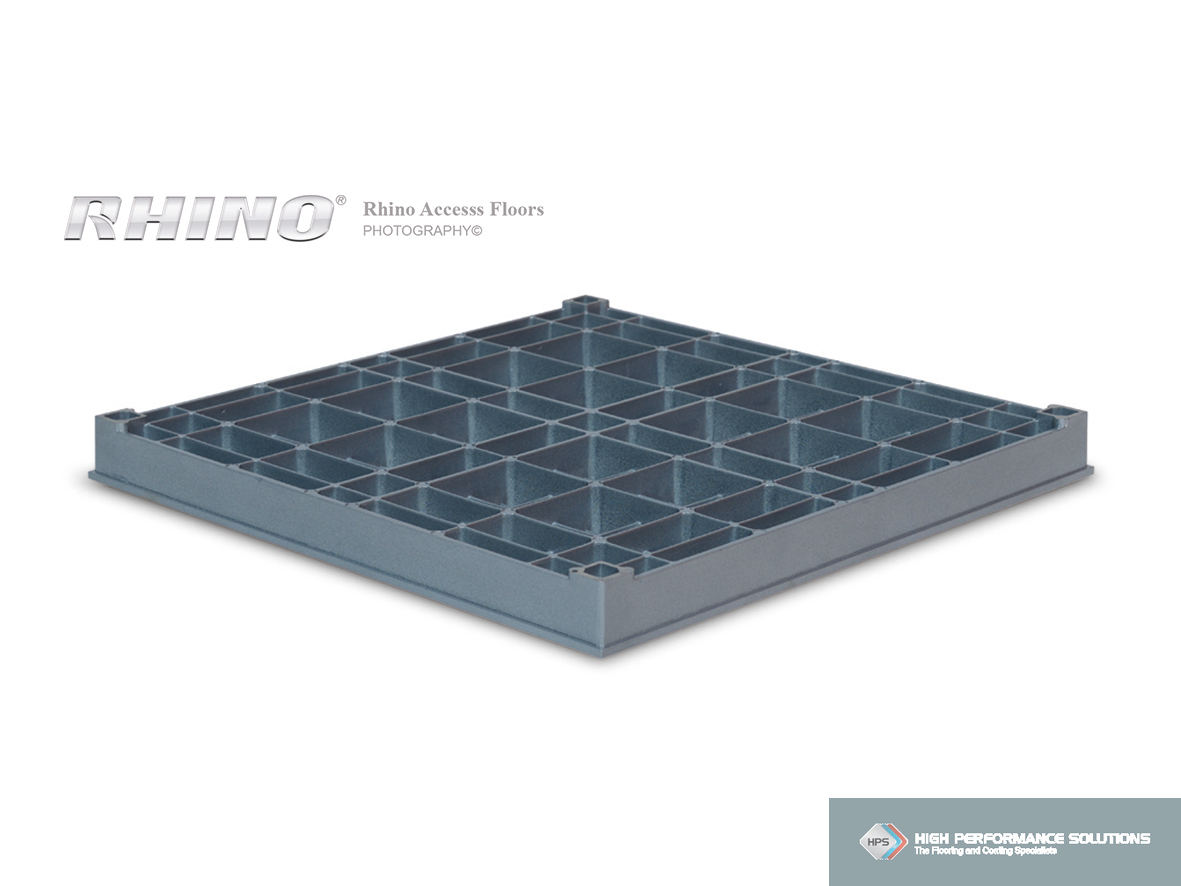

Features

1. Non-toxic and non-combustible

2. Anti-corrosion and anti-magnetic

3. Impressive acoustic performance

4. Superb underfoot comfort

5. Light weight and high loading capacity

6. 50% airflow rates

Download Brochures

RhinoAlutec® Grating.pdf (PDF; 445.7kb)
