RhinoAlutec® Perforated
The add to cart button will appear once you select the values above
Rhino Raised Flooring / Product information

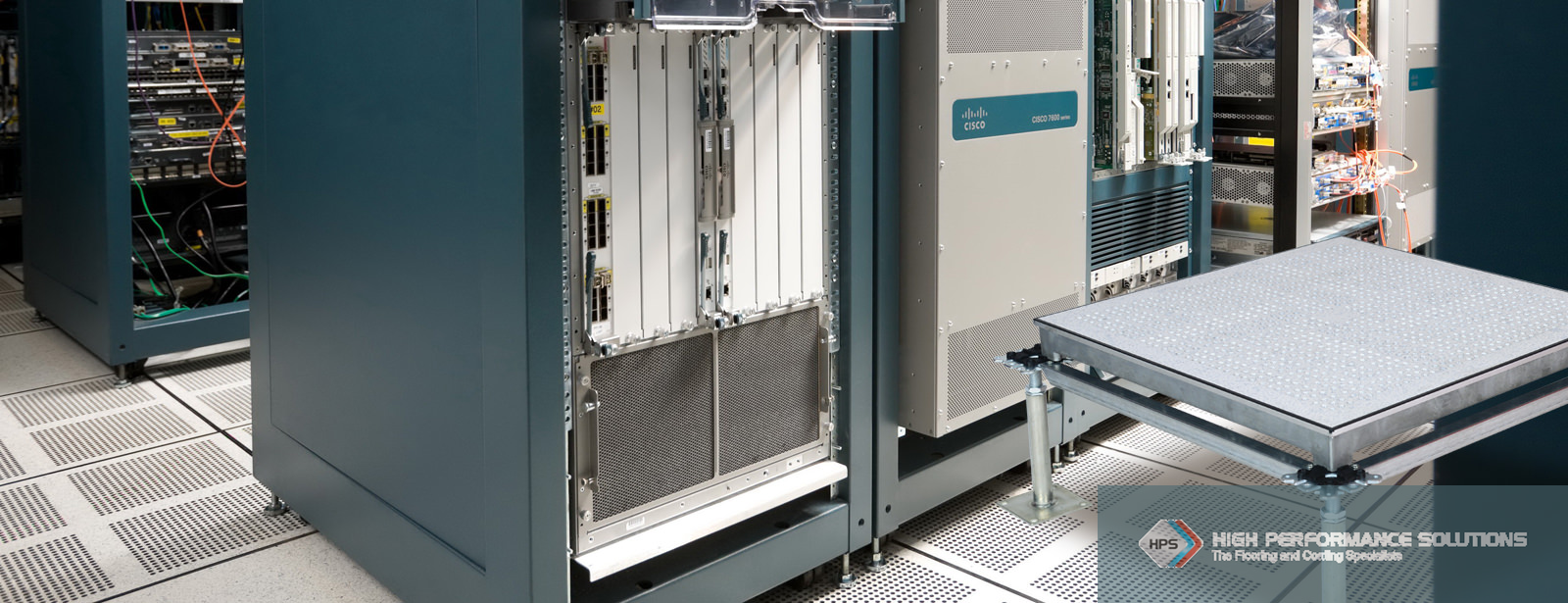

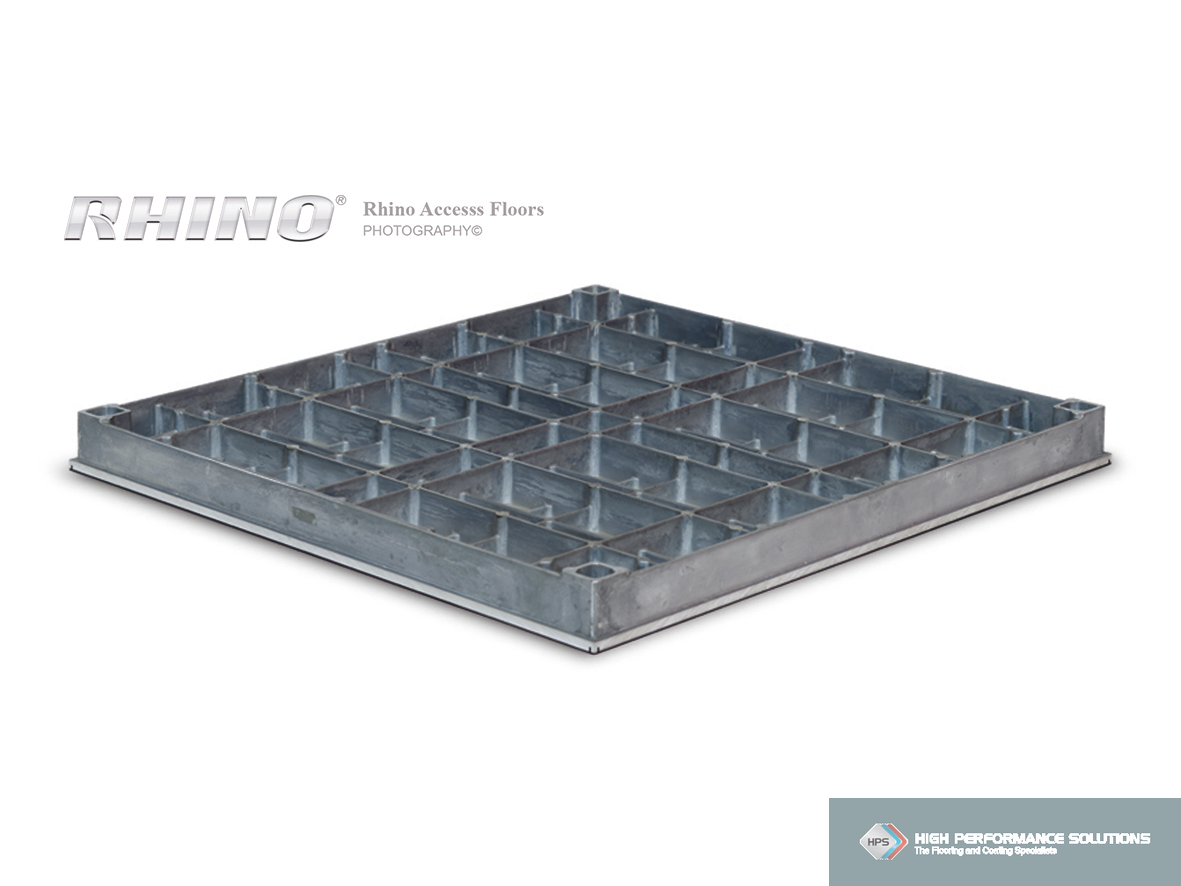

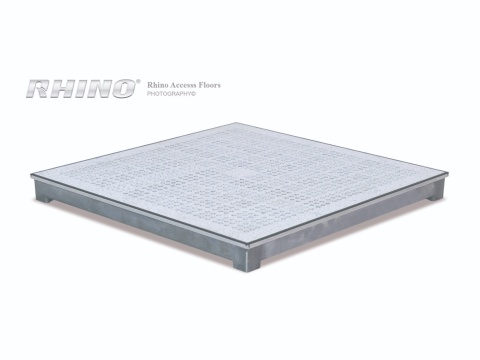

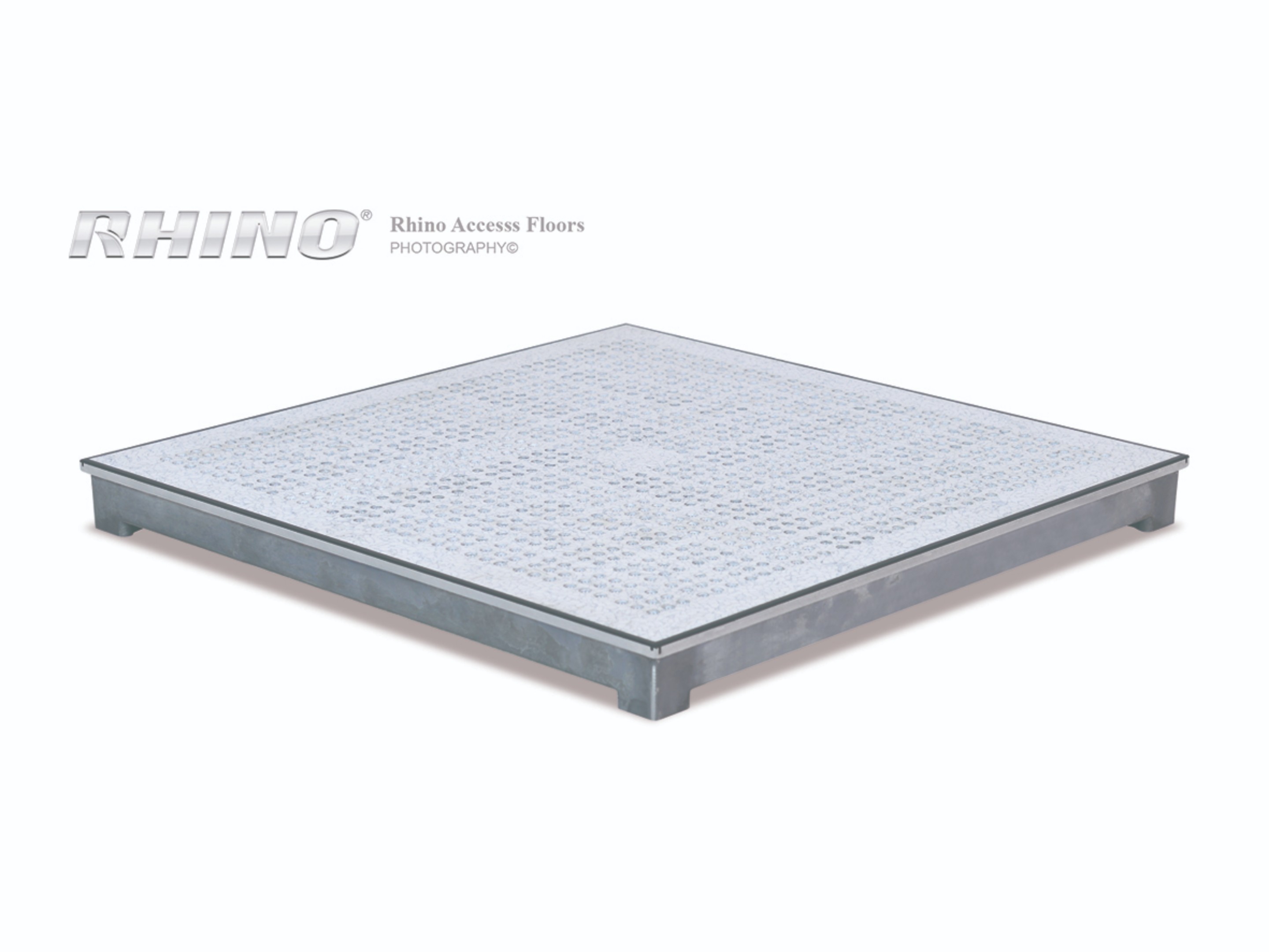

Alutec aluminum perforated panel has the same lattice structure design of solid panel, the top of the panel is laminated with anti-static HPL or conductive vinyl, this perforated panel with 1,080 chamfered holes and nominal air open ratios from 17% - 25% are designed to meet specific air flow requirements for both data centers and clean rooms

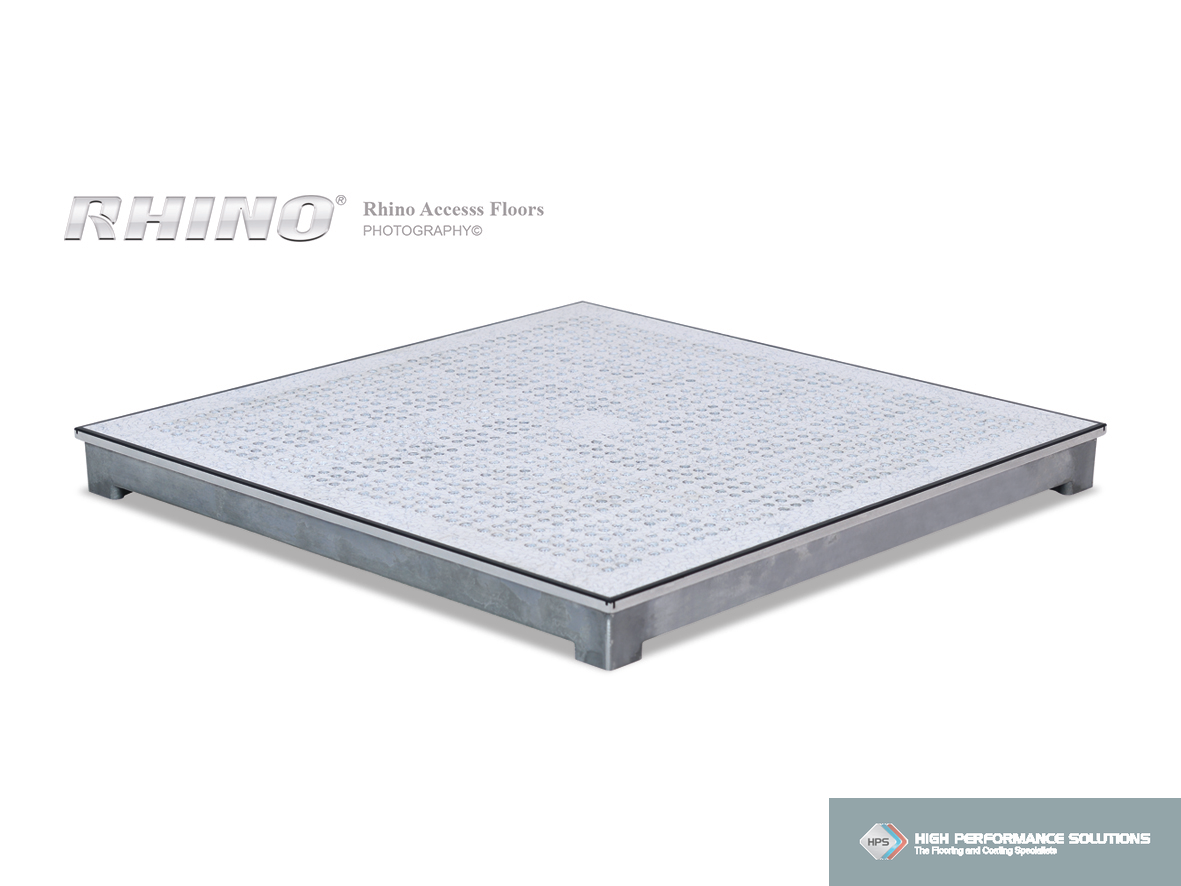

Technical Specs
| ALP1000 | ALP1250 | ALP1500 | |
|---|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 55.00 mm | 55.00 mm | 55.00 mm |
| Panel Weight | 9.00 kgs | 10.00 kgs | 11.00 kgs |
| System Weight (typical) | 31.07 kgs | 33.85 kgs | 36.63 kgs |
| Point load 25x25mm sq | 4.50 kN | 5.56 kN | 6.67 kN |
| UDL/SQM | 12.00 kN | 14.83 kN | 17.80 kN |
| Ultimate load | 13.50 kN | 16.68 kN | 20.01 kN |
Features
1. Anti-corrosion and anti-magnetic
2. Impressive acoustic performance
3. Superb underfoot comfort
4. Light weight and high loading capacity
5. Wide range of covering options
6. 17% - 25% airflow rates
