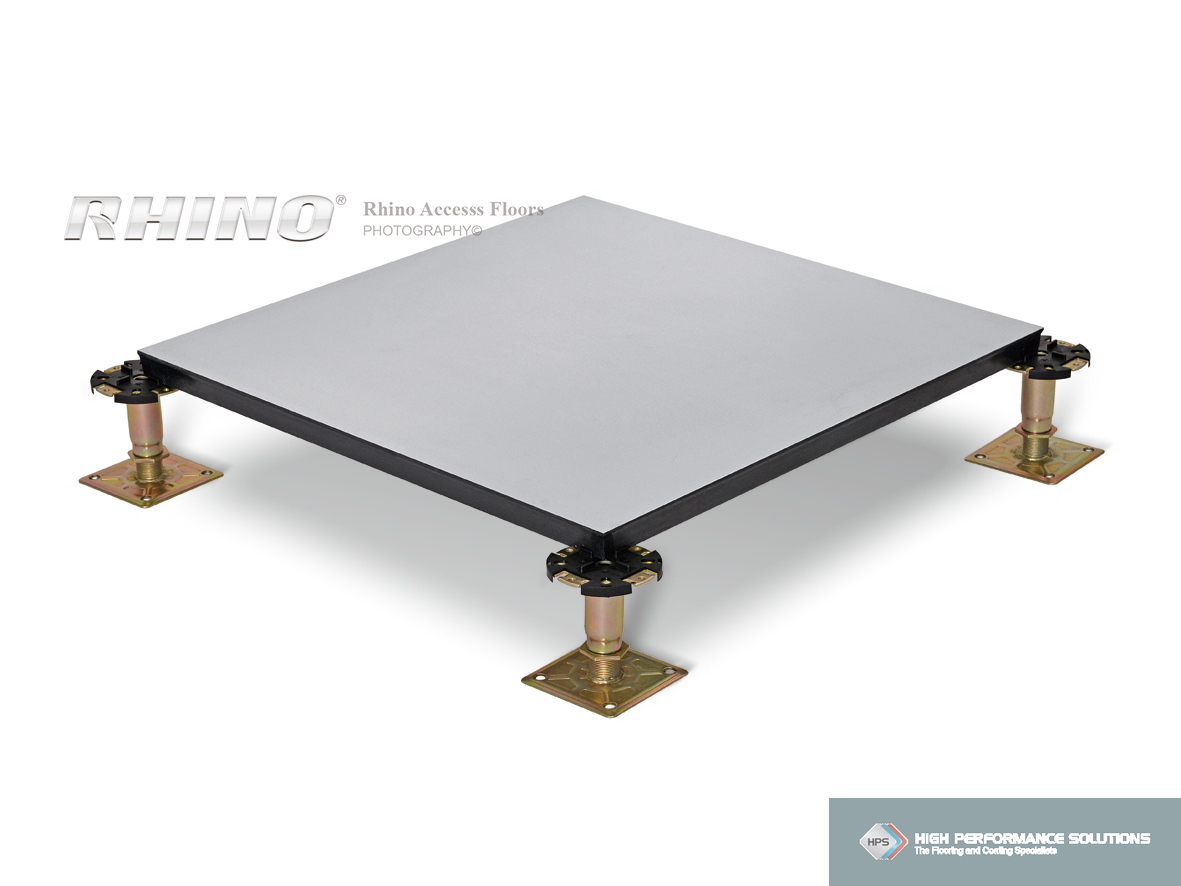

RhinoEU® Bare

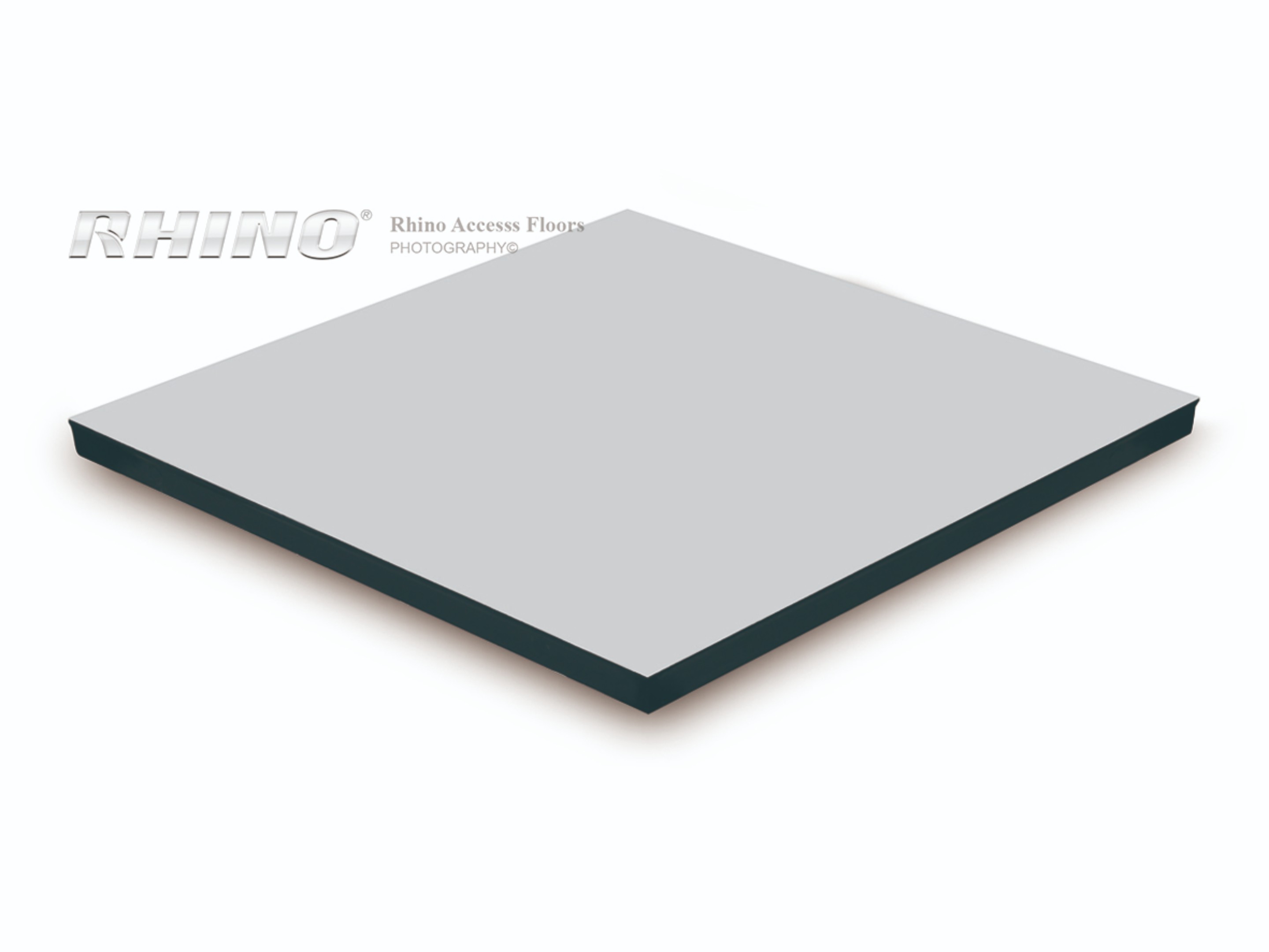

RhinoEU® Bare finish panels are manufactured from a high density of calcium sulphate (approx. 1,650 kg/m³) non-toxic and non-combustible material. The top and base surfaces of the core are laminated with galvanized steel sheet. The panel edges are then laminated with an ABS/PVC edge band which provides protection to the calcium sulphate core.

Technical Specs

	EU800	EU1000	EU1250
Panel Size	600mm x 600mm	600mm x 600mm	600mm x 600mm
Panel Thickness (nominal)	30.00 mm	31.00 mm	32.00 mm
Panel Weight	17.50 kgs	18.00 kgs	18.50 kgs
System Weight (typical)	56.12 kgs	58.90 kgs	61.68 kgs
Point load 25x25mm sq	3.00 kN	4.50 kN	5.56 kN
UDL/SQM	8.00 kN	12.00 kN	14.83 kN
Ultimate load	9.00 kN	13.50 kN	16.68 kN

Features

1. Non-toxic

2. Non-combustible

3. Impressive acoustic performance

4. Superb underfoot comfort

5. High load capacity

6. Low air leakage rate
