Rhino Raised Flooring / Product information

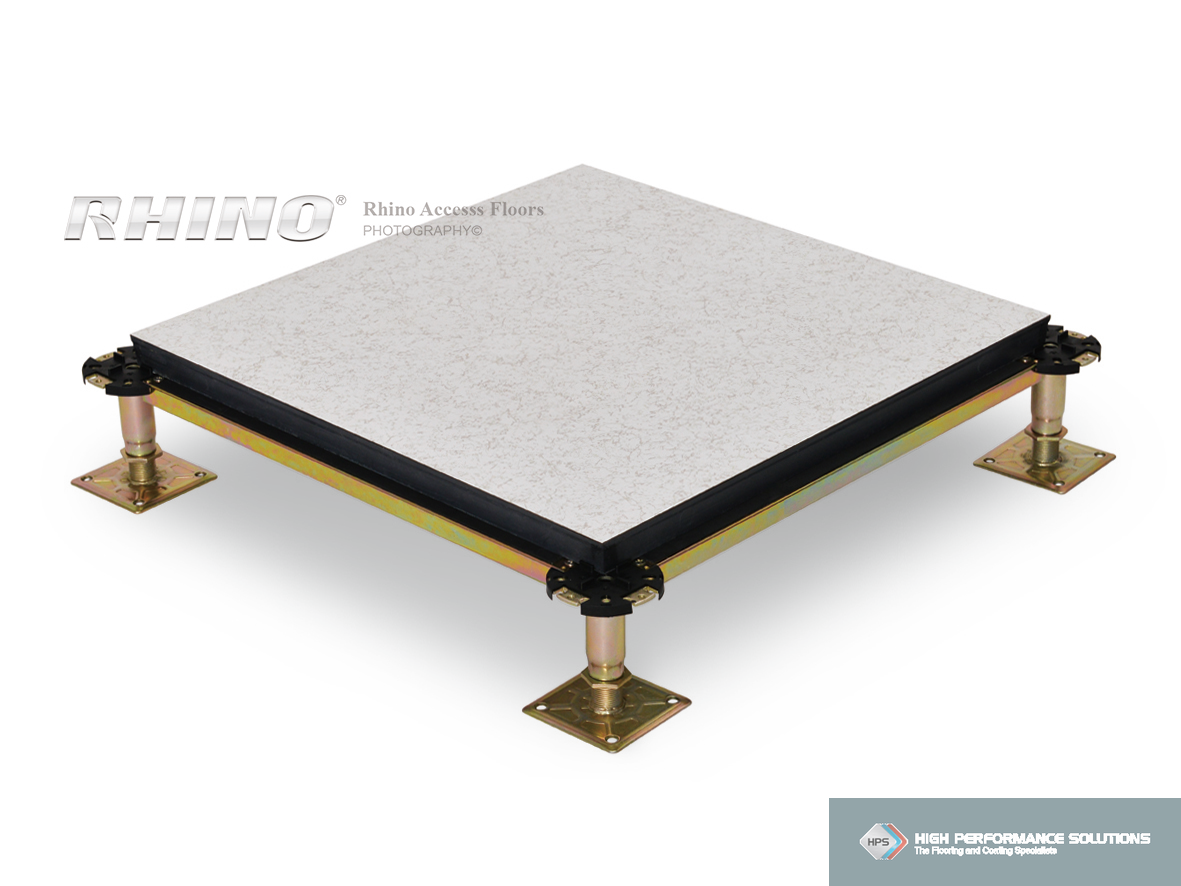

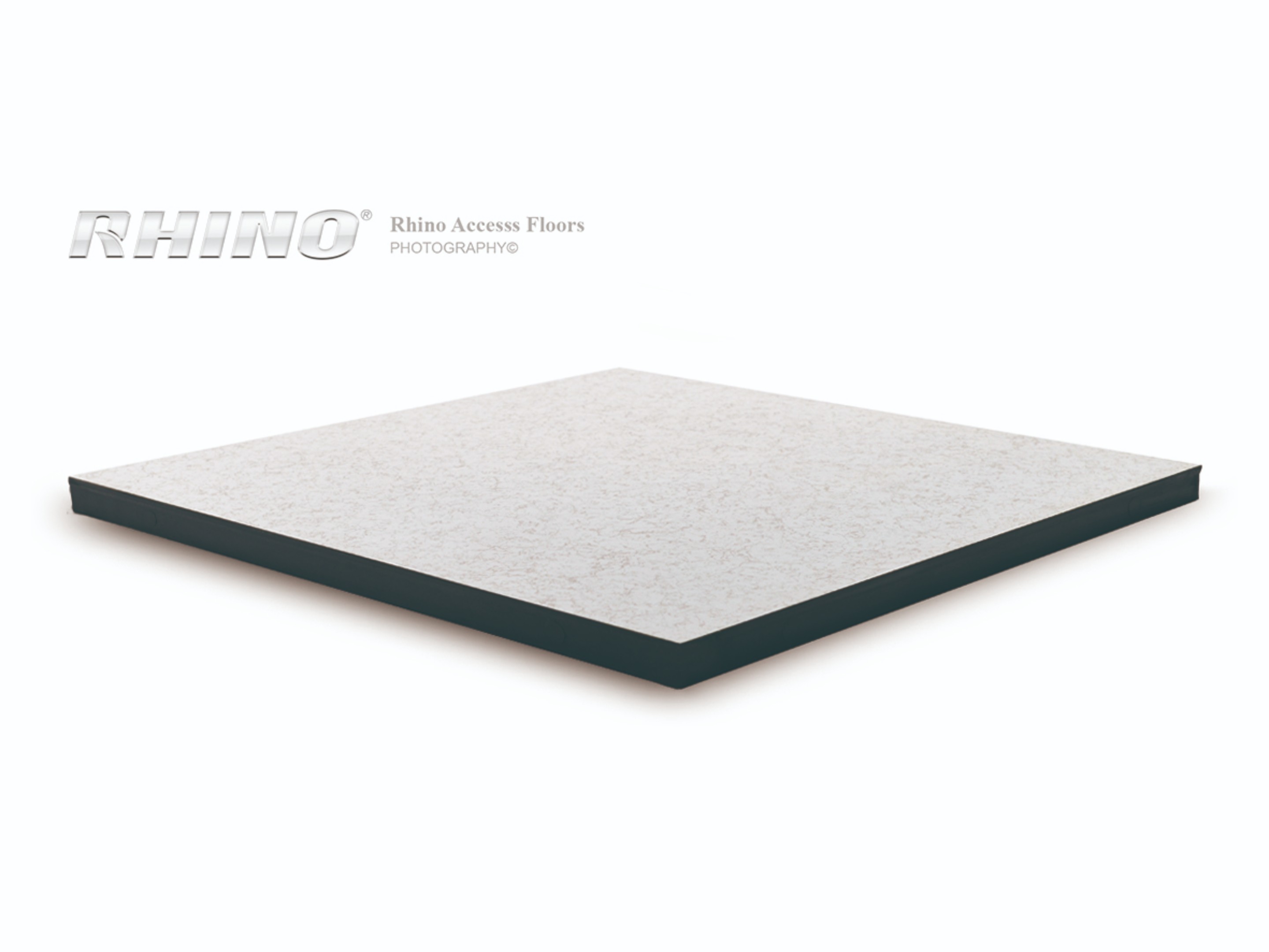

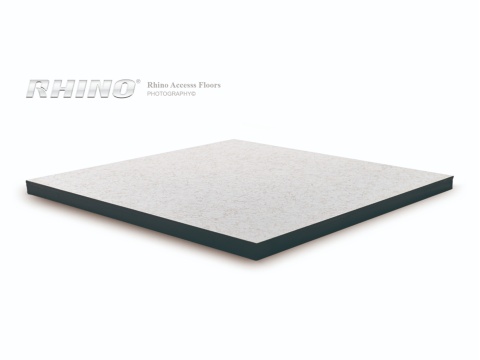

RhinoEU® Covered panels are manufactured from a high density of calcium sulphate (approx. 1,650 kg/m³) non-toxic and non-combustible material. The top surface of the core is laminated with Anti-static High Pressure Laminate (HPL) or Conductive Vinyl (PVC) tiles and the base surface is laminated with galvanized steel sheet. The panel edges are then laminated with an ABS/PVC edge band which provides protection to the calcium sulphate core.
Technical Specs
| EU800C | EU1000C | |
|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 30.00 mm | 31.00 mm |
| Panel Weight | 18.00 kgs | 19.00 kgs |
| System Weight (typical) | 56.12 kgs | 58.90 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN |
| UDL/SQM | 8.00 kN | 12.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN |
Features
1. Non-toxic
2. Non-combustible
3. Impressive acoustic performance
4. Superb underfoot comfort
5. Low air leakage rate
6. Wide range of covering options
