RhinoEU® Encapsulated
The add to cart button will appear once you select the values above
Rhino Raised Flooring / Product information

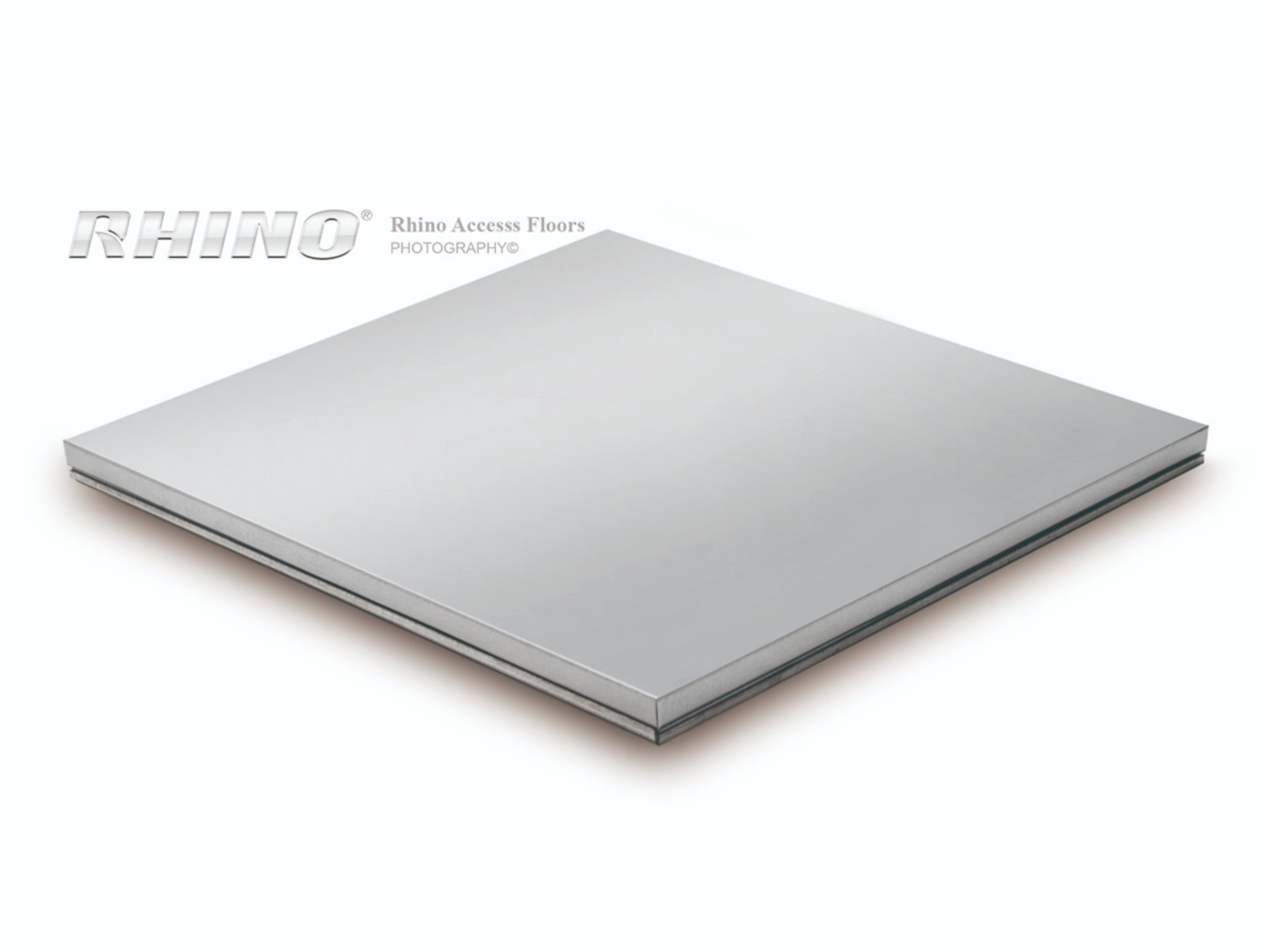

RhinoEU® Full-encapsulated panels are manufactured from a high density of calcium sulphate (approx. 1,650 kg/m³) non-toxic and non-combustible material. The design incorporates a unique wrap around construction which makes panel removal and replacement easily. This design provides more strength on edges.
Technical Specs
| EU800F | EU1000F | EU1250F | |
|---|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 29.00 mm | 30.00 mm | 31.00 mm |
| Panel Weight | 17.50 kgs | 18.00 kgs | 18.50 kgs |
| System Weight (typical) | 56.12 kgs | 58.90 kgs | 61.68 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN | 5.56 kN |
| UDL/SQM | 8.00 kN | 12.00 kN | 14.83 kN |
| Ultimate load | 9.00 kN | 13.50 kN | 16.68 kN |
Features
Non-toxic
2. Non-combustible
3. Impressive acoustic performance
4. Superb underfoot comfort
5. High load capacity
6. Low air leakage rate
Download Brochures
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
Request technical information
