RhinoFLOR® Bare
The add to cart button will appear once you select the values above
Rhino Raised Flooring / Product information

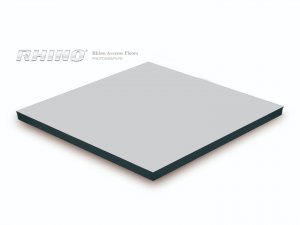

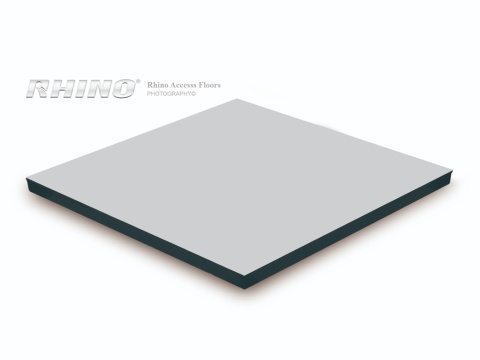

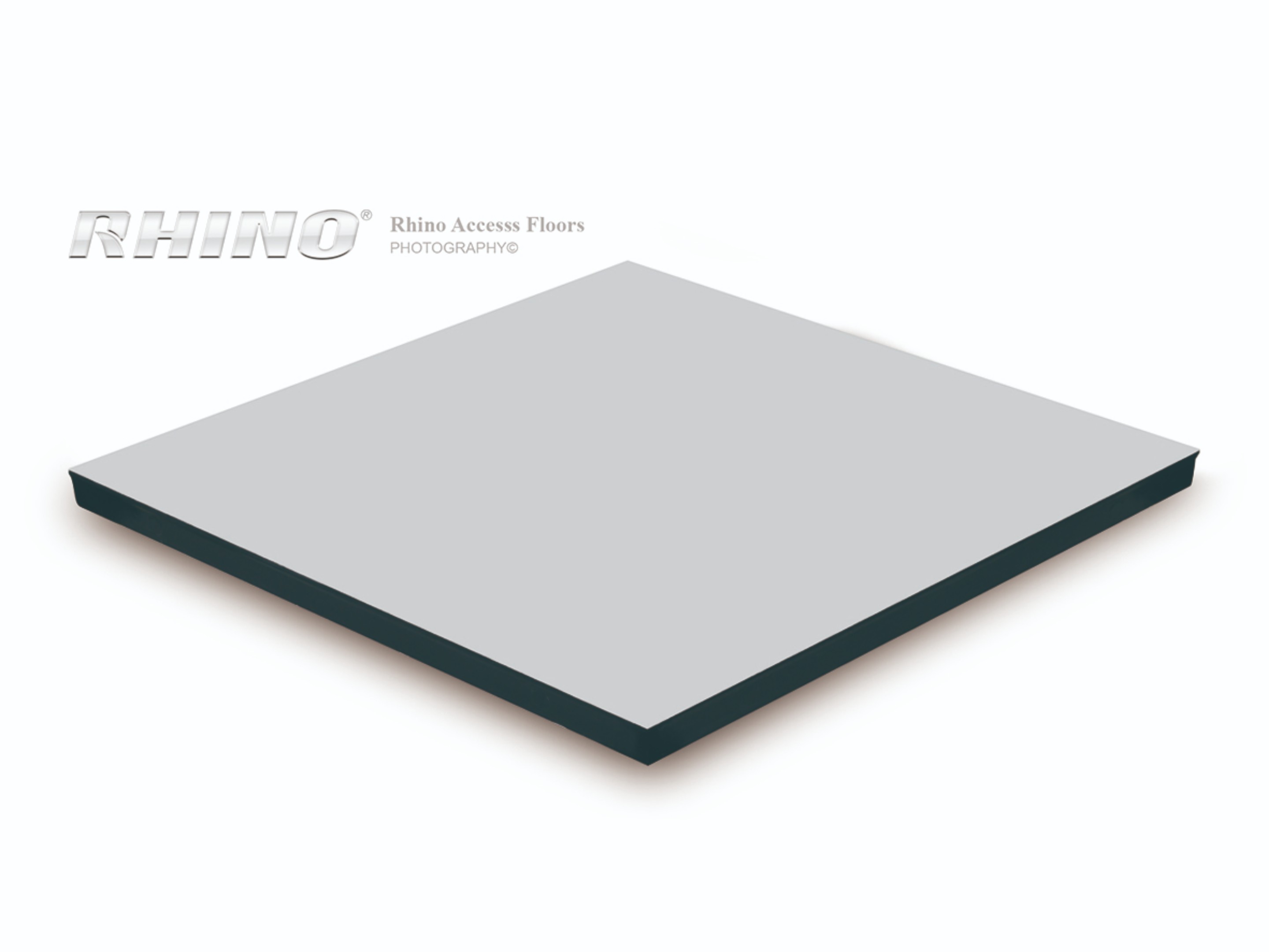

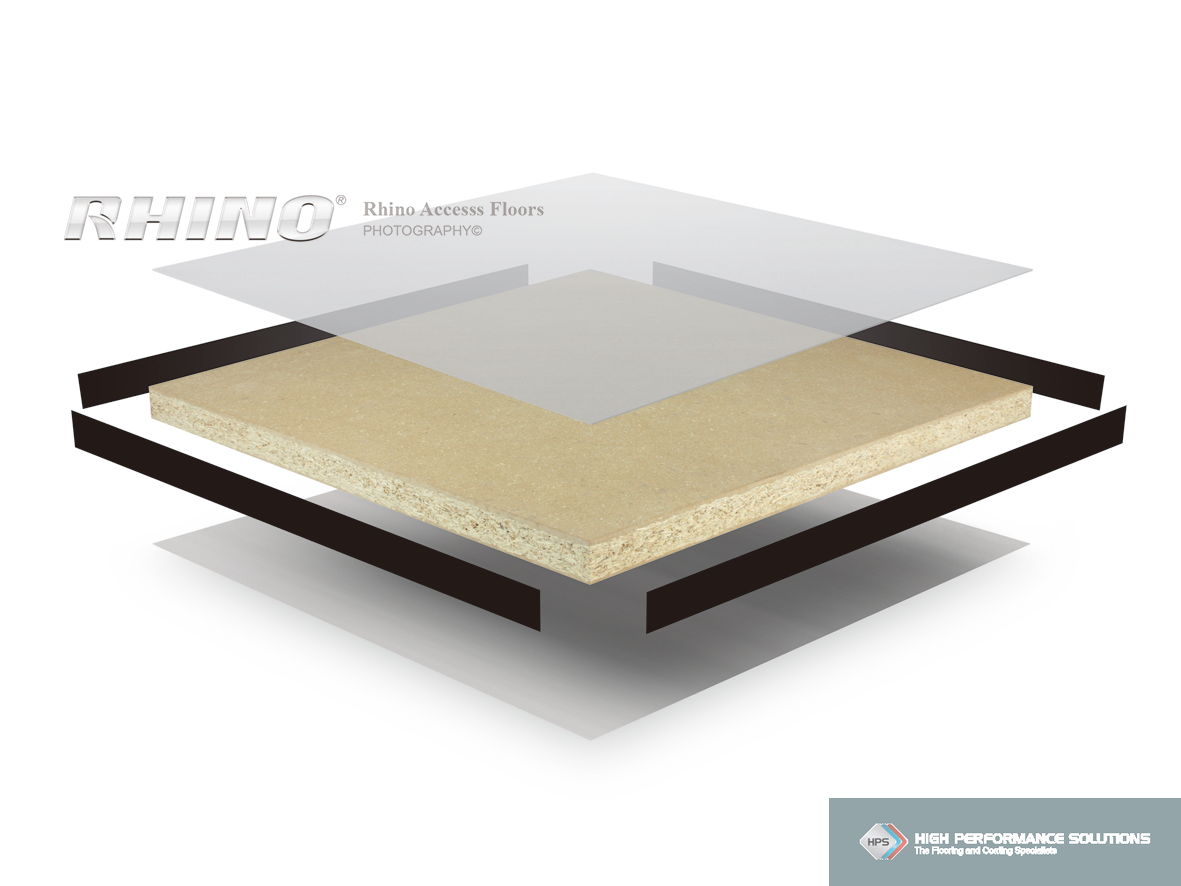

RhinoFLOR® bare finish panels are manufactured from chipboard core (approx. 680 kg/m³) non-toxic and light weight material. The top and bottom surface of the core are laminated with galvanized steel sheet. The panel edges are then laminated with an ABS/PVC edge band which provides protection to the chipboard core.

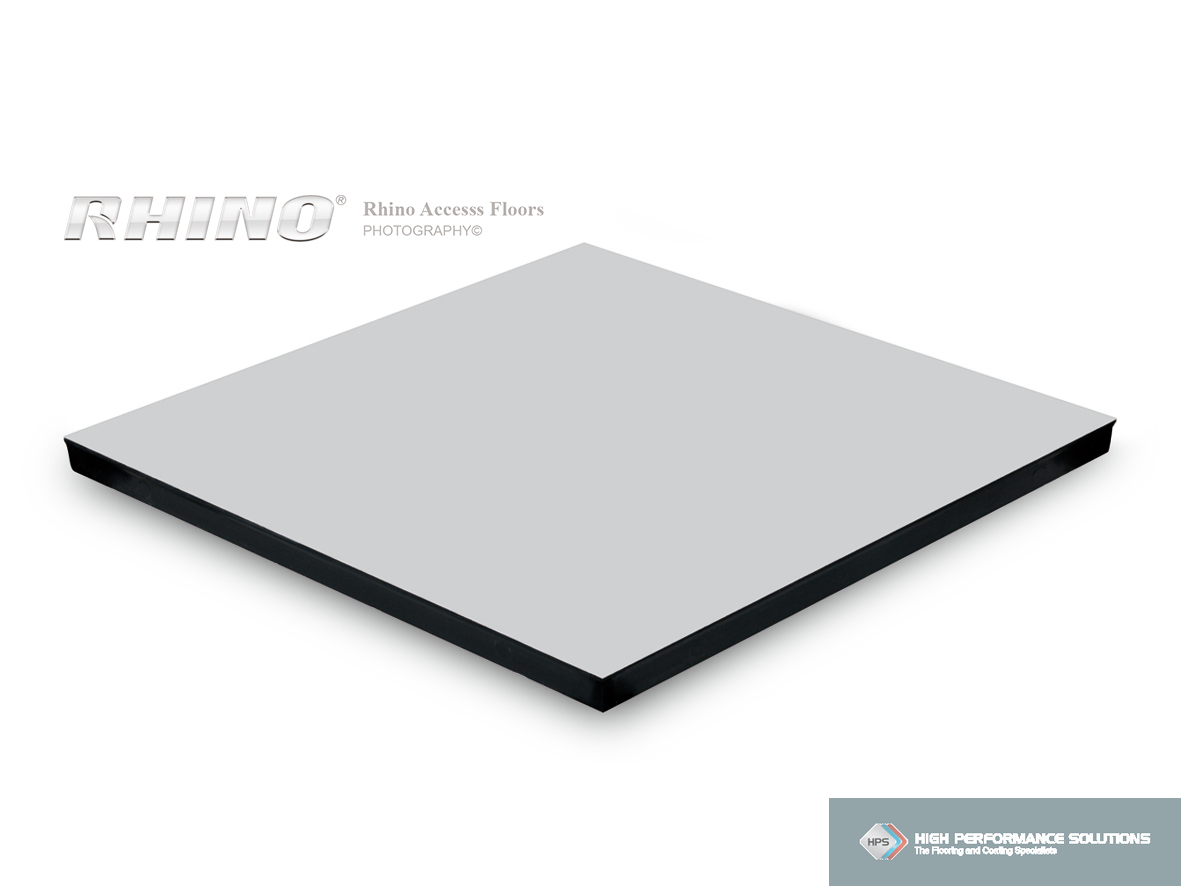

Technical Specs
| F30 | F38 | |
|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 31.00 mm | 39.00 mm |
| Panel Weight | 8.00 kgs | 10.00 kgs |
| System Weight (typical) | 28.29 kgs | 33.85 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN |
| UDL/SQM | 8.00 kN | 12.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN |
Features
Light weight
2. Good acoustic performance
3. Solid underfoot
4. Low air leakage rate
5. Safe and easy access
6. Excellent lateral stability

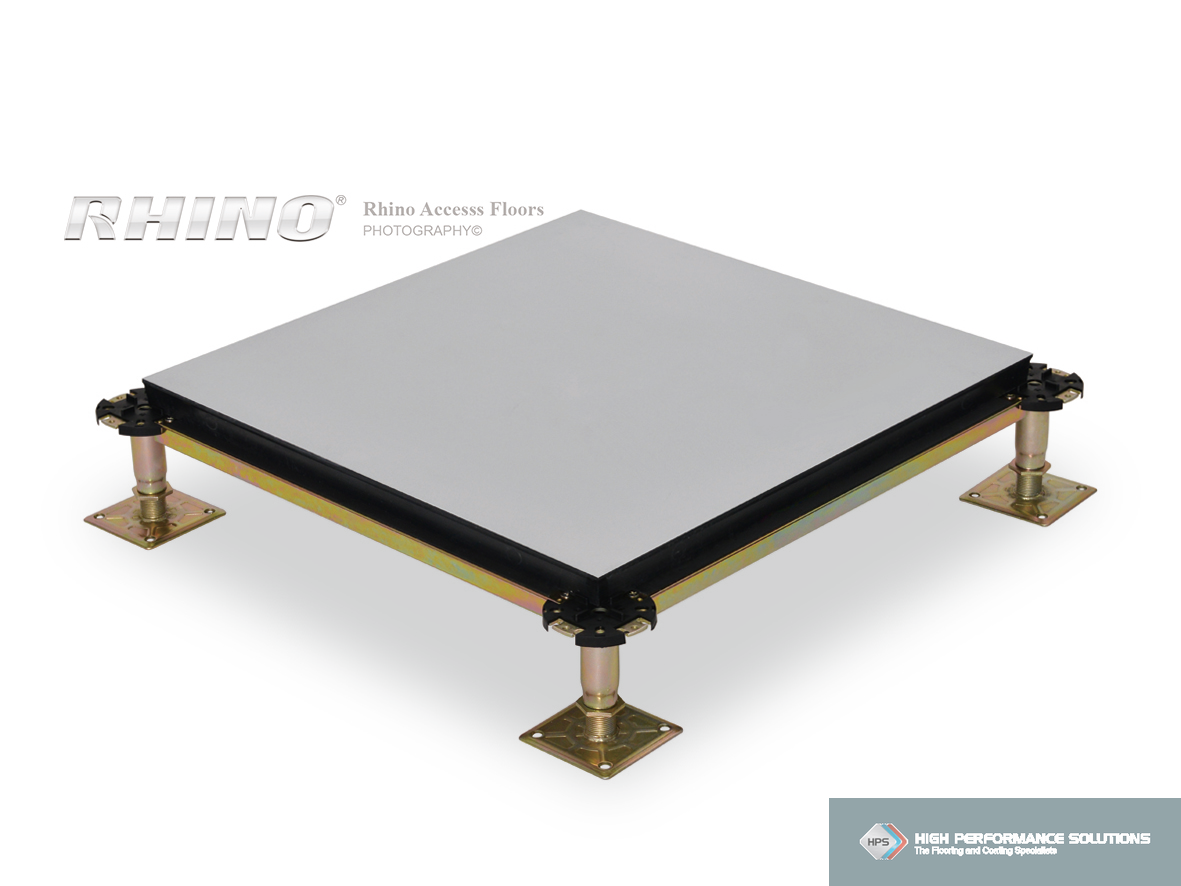

Download Brochures
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
Request technical information
