RhinoROC® Covered F-trim
The add to cart button will appear once you select the values above
Rhino Raised Flooring / Product information

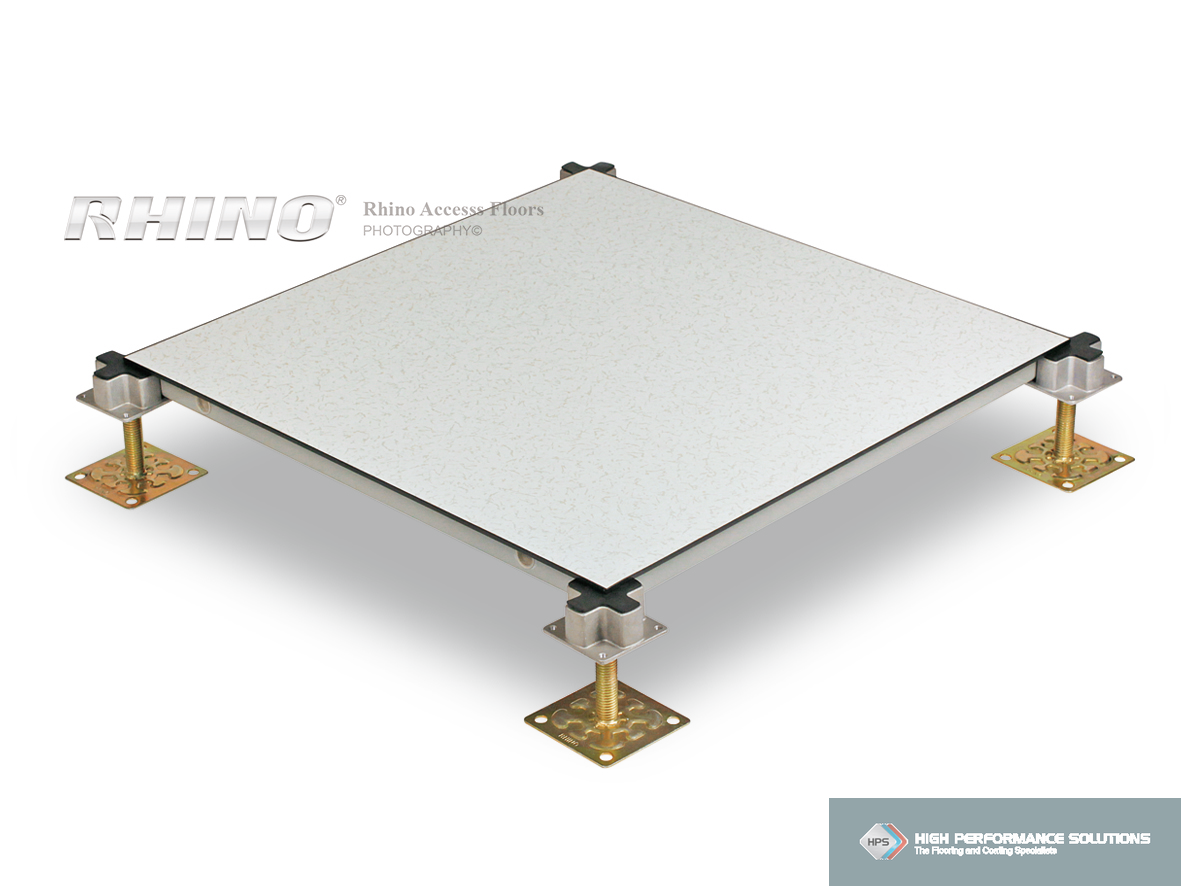

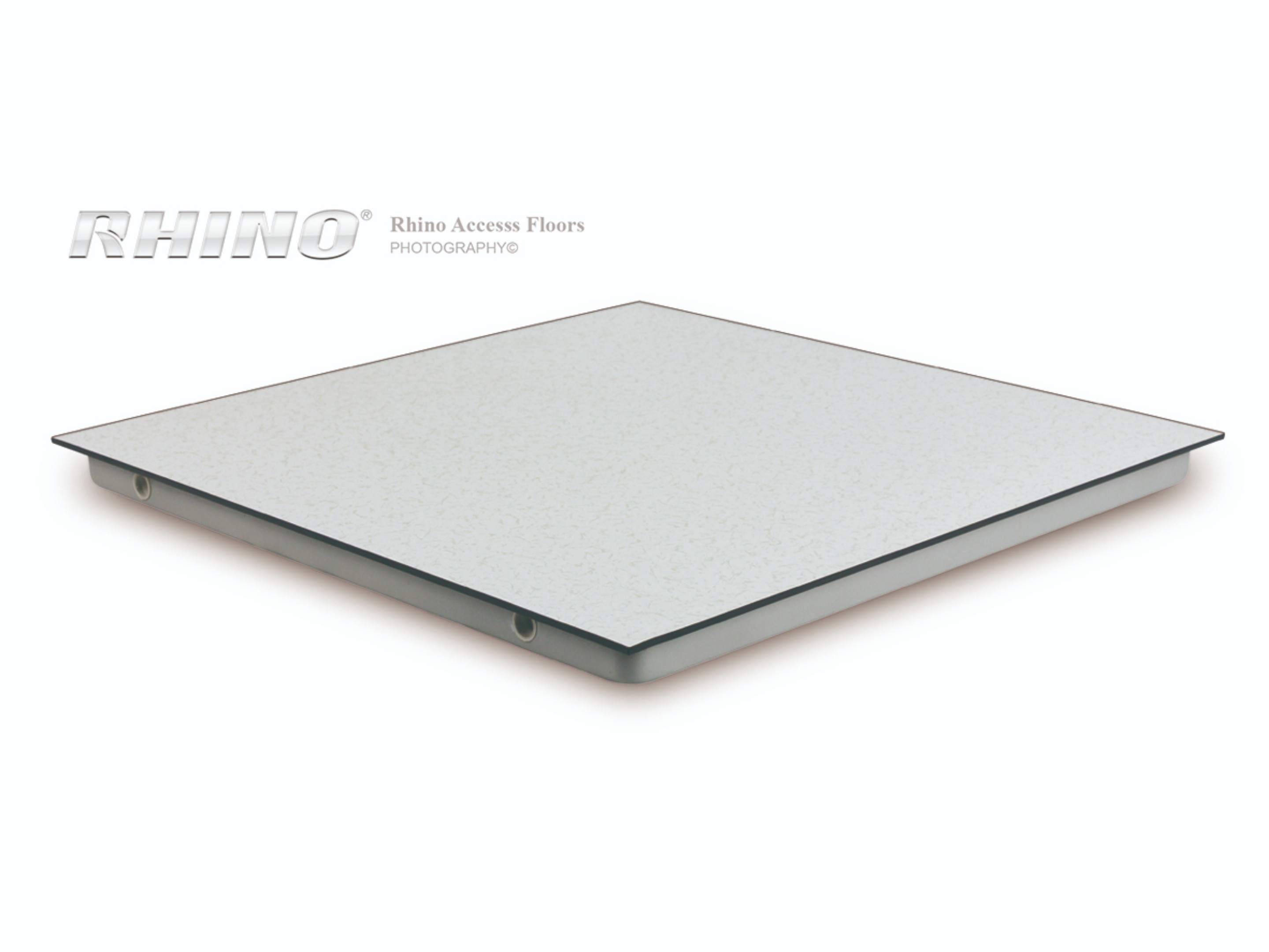

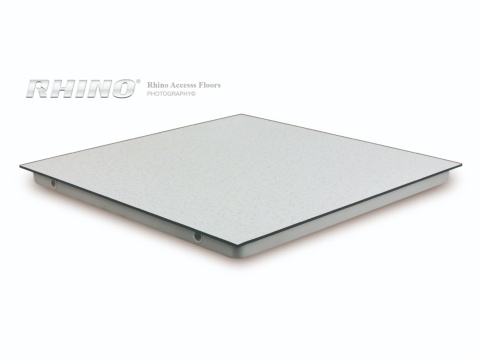

RhinoROC® Covered Panel w/ F-mini trim has the same welded structural steel technology found in the Roc bare finish panel making the two interchangeable. The tiny straight trim with excellent squareness is the premier choice for an office building when client has a special requirement for HPL or Vinyl floor covering with various colors option.

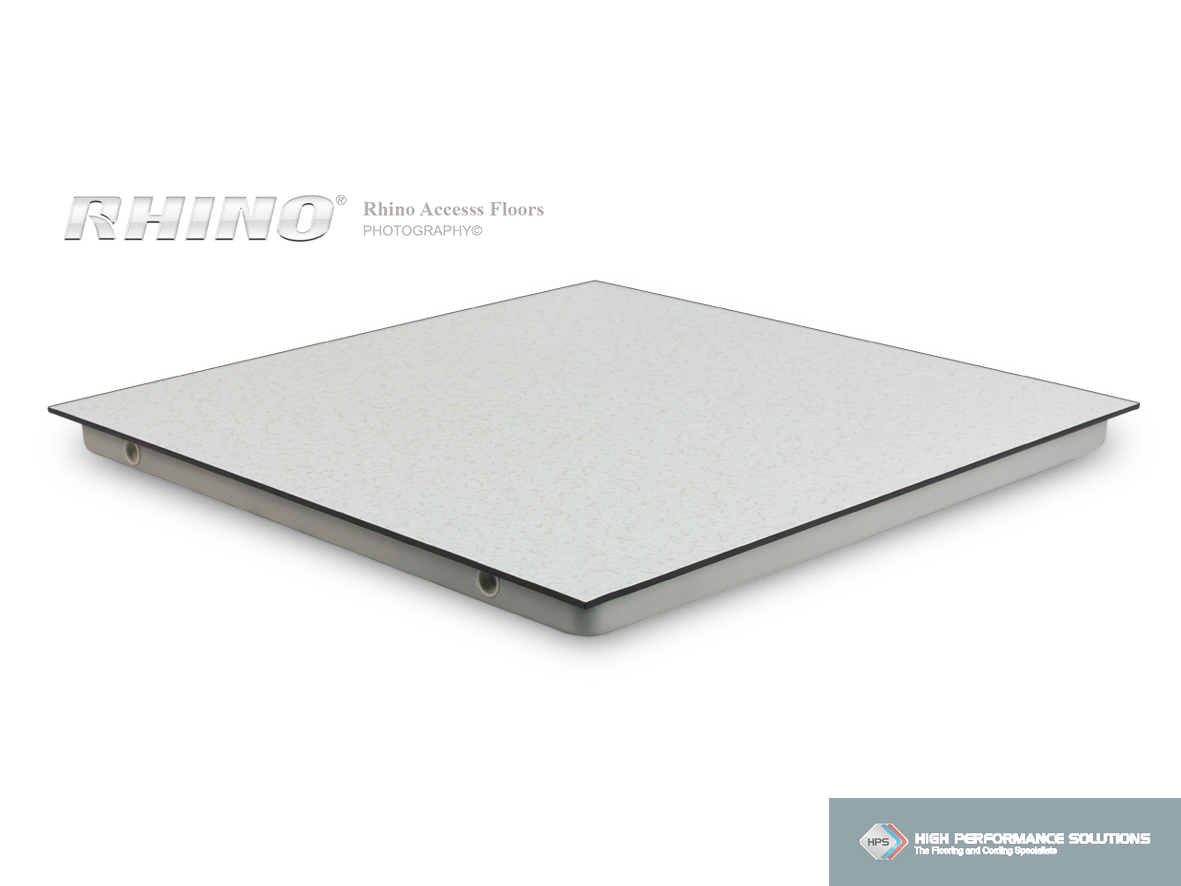

Technical Specs
| ROC100F | ROC200F | |
|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 35.00 mm | 35.00 mm |
| Panel Weight | 13.00 kgs | 14.00 kgs |
| System Weight (typical) | 45.00 kgs | 48.00 kgs |
| Point load 25x25mm sq | 3.56 kN | 4.45 kN |
| UDL/SQM | 14.00 kN | 17.00 kN |
| Ultimate load | 10.68 kN | 13.34 kN |

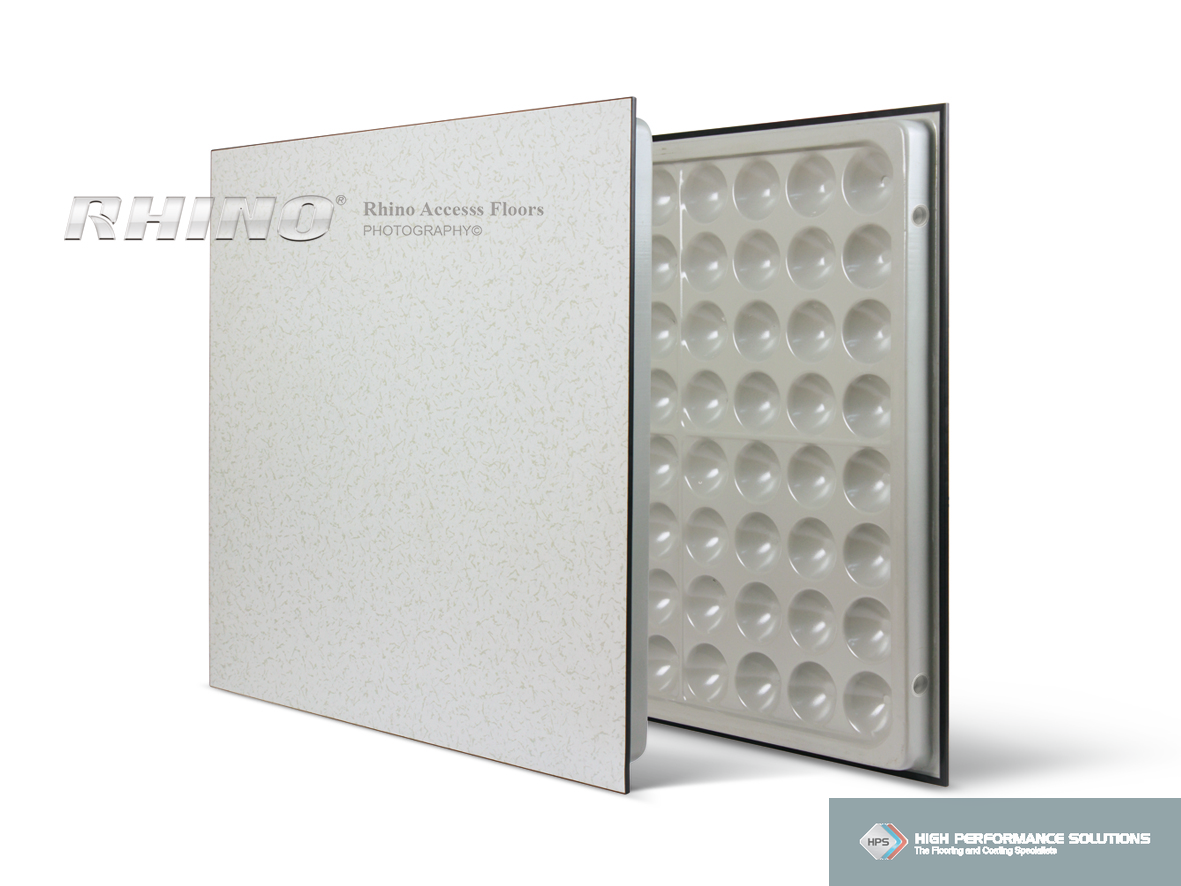

Features
Interchangeable with other Roc panels
2. Quiet, with a solid feel underfoot
3. Powder-coated, protective epoxy finish
4. Wide range of covering options
Download Brochures
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
Request technical information
